MT3-GT | True Three-Phase Meter Test Board
Get ready to raise your standards

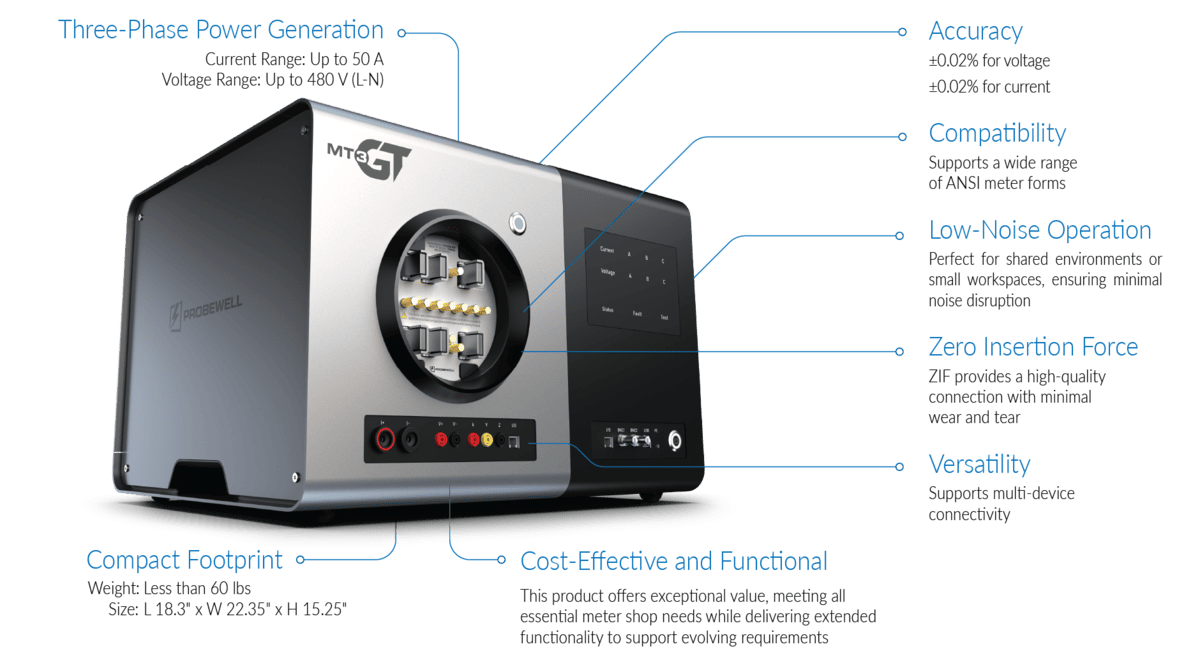

The MT3-GT true three-phase meter test board is a real catalyst for progress, delivering the perfect balance of agility, precision and flexibility in a compact, quiet design.
Balance cost and functionality
- Advanced performance and versatility
- User-friendly interface
- Quiet operation
- Zero Insertion Force (ZIF)
- Compatible with most meter forms
- Current Range: Up to 50 A
- Voltage Range: Up to 480 V
SKU: MT3-GT
Weight: Less than 90 lbs
Size: L 18.3″ x W 22.35″ x H 15.25″
MT3-GT Three-Phase Meter Test Board | Description

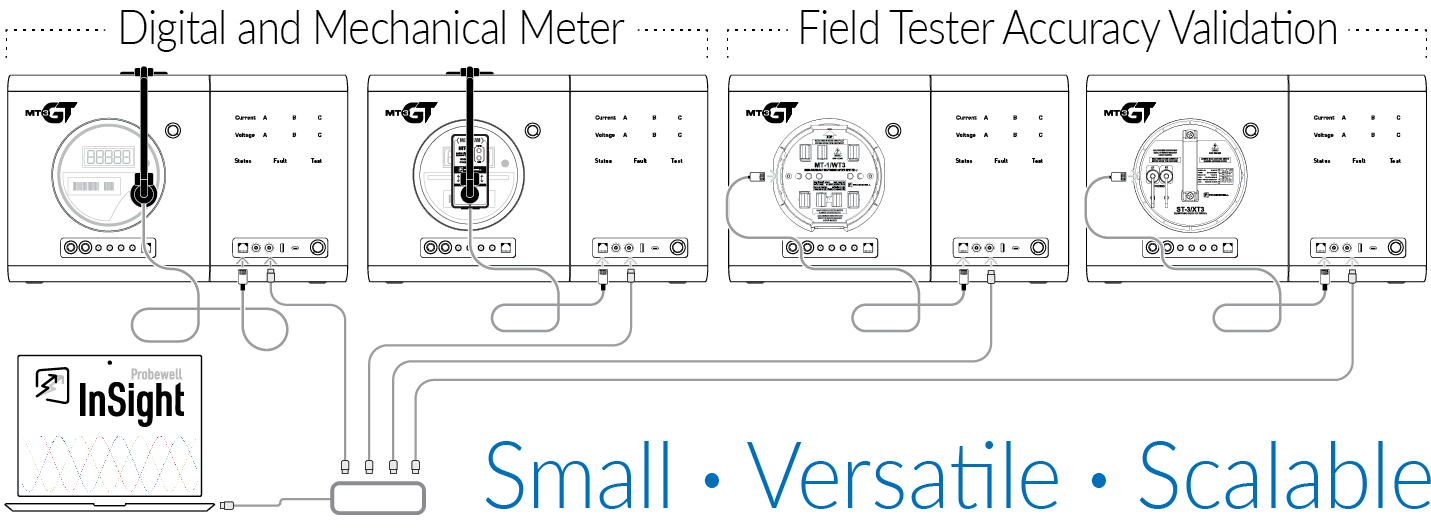

One Stop Shop
Compatible with most meter forms
The MT3-GT true three-phase meter test board can test residential, commercial and industrial single and three-phase meters, users will be able to test both solid state and electromechanical meters.
Single-phase: 1S, 2S, 3S, 4S, 12S and 25S
Polyphase: 6S, 8S, 9S, 12S, 14S, 15S, 16S, 35S, 36S, 45S, 46S
Class: 10, 20, 100, 200, 320
Probewell Lab’s Field Testers Accuracy Validation
Another feature of the MT3-GT meter test board, is its ability to perform an accuracy validation on any Probewell WT Series, the XT Series and NT Series Field tester. Enabling utilities the freedom to becoming self-sufficient when it comes to other Probewell testers accuracy validation.
The MT3-GT Three-Phase Meter Test Board is Cost-Effective and Functional
This product offers exceptional value, meeting all essential meter shop needs while delivering extended functionalities to support evolving requirements
Lightweight design and compact footprint
Accessories
The Mechanical Arm
The track mount system enables fast, precise sensor positioning of the accessories on any axis, ensuring stable, effortless meter handling and maximizing efficiency in batch testing
· Optical Test and Programming Pickup
· Disk revolution pickup sensor for elecromechanical meters
· Accuracy Test Kit (ATK) for Probewell field testers
Customizable Testing and
Comprehensive Reporting

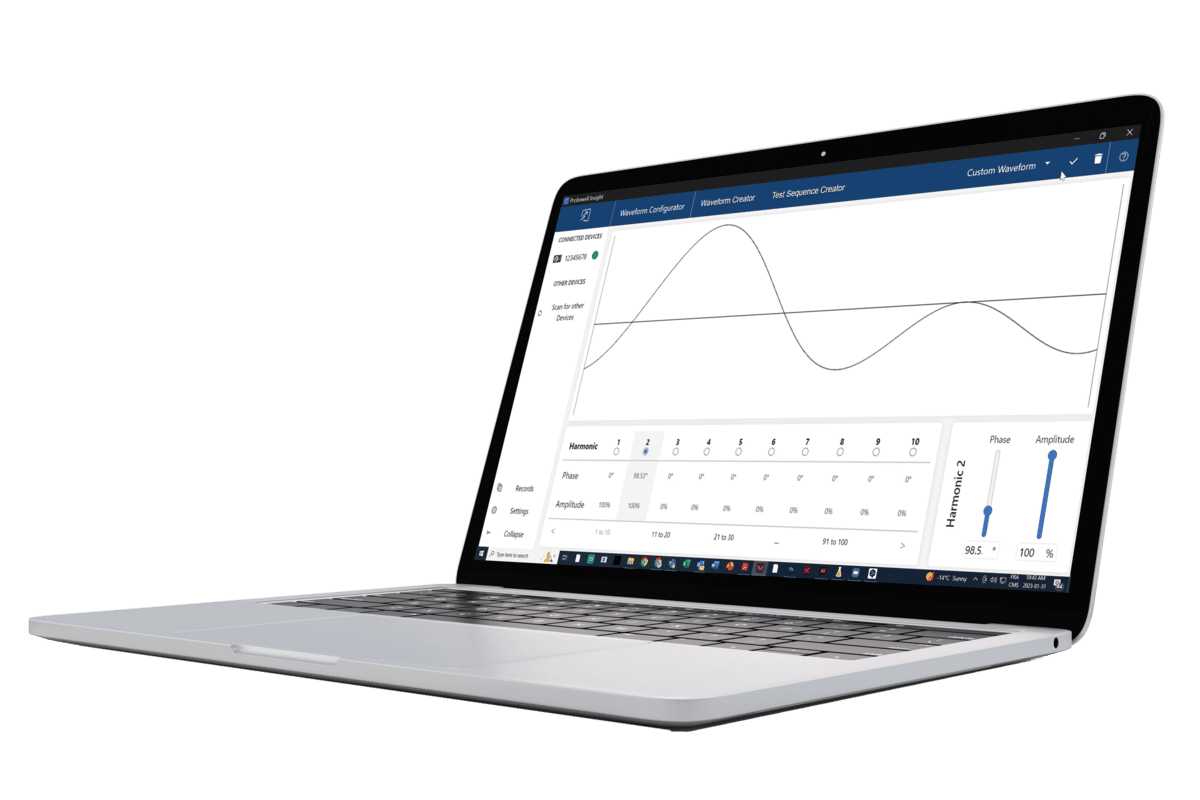

Paired with Probewell InSight application for Windows, the MT3-GT offers advanced features that simplify testing, right out of the box.
(Learn More)
API Compatibility
Seamless third-party software integration for enhanced connectivity, ensuring compatibility with existing systems and enabling advanced data sharing automation tailored to your specific needs.
MT3-GT
True Three-Phase Meter Test Board
Get ready to raise your standards
Balance cost and functionality
The MT3-GT is a real catalyst for progress, delivering the perfect balance of agility, precision and flexibility in a compact, quiet design.
- Advanced performance and versatility
- User-friendly interface
- Quiet operation
- Zero Insertion Force (ZIF)
- Compatible with most meter forms
- Current Range: Up to 50 A
- Voltage Range: Up to 480 V
Weight: Less than 90 lbs
Size: L 18.3″ x W 22.35″ x H 15.25″
SKU: MT3-GT
MT3-GT | Description
One Stop Shop
Compatible with most meter forms
You can test residential, commercial and industrial single and three-phase meters, users will be able to test both solid state and electromechanical meters.
Single-phase: 1S, 2S, 3S, 4S, 12S and 25S
Polyphase: 6S, 8S, 9S, 12S, 14S, 15S, 16S, 35S, 36S, 45S, 46S
Class: 10, 20, 100, 200, 320
Probewell Lab’s Field Testers Accuracy Validation
Another feature of the MT3-GT meter test board, is ability to perform an accuracy validation on any Probewell WT series, the XT Series and NT Series Field tester. Enabling utilities the freedom to becoming self-sufficient when it comes to other Probewell testers accuracy validation.
The MT3-GT Three-Phase Meter Test Board is Cost-Effective and Functional
This product offers exceptional value, meeting all essential meter shop needs while delivering extended functionalities to support evolving requirements
Lightweight design and compact footprint
Accessories
The Mechanical Arm
The track mount system enables fast, precise sensor positioning of the accessories on any axis, ensuring stable, effortless meter handling and maximizing efficiency in batch testing
· Optical Test and Programming Pickup
· Disk revolution pickup sensor for elecromechanical meters
· Accuracy Test Kit (ATK) for Probewell field testers
Customizable Testing and
Comprehensive Reporting
Paired with Probewell InSight application for Windows®, the MT3-GT three-phase meter test board offers advanced features that simplify testing, right out of the box.
(Learn More)
API Compatibility
Seamless third-party software integration for enhanced connectivity, ensuring compatibility with existing systems and enabling advanced data sharing automation tailored to your specific needs.
MT3-GT Three-Phase Meter Test Board | Technical Specifications
| COMPATIBLE METERS | |
| Single-Phase | 1S, 2S, 3S, 4S, 12S and 25S |
| Three-Phase | 6S, 8S, 9S, 12S, 14S, 15S, 16S, 35S, 36S, 45S, 46S |
| Class | 10, 20, 100, 200, 320 |
| COMPATIBLE DEVICES | |
| Operating systems | Windows® |
| TRUE THREE-PHASE CURRENT SYNTHESIZERS | |
| Adjustable Current | Up to 50 A |
| Phase Angle | 0 to 360° |
| TRUE THREE-PHASE VOLTAGE SYNTHESIZERS | |
| Adjustable Voltage | Up to 480 (VrmsL-N) |
| Phase Angle | 0 to 360° |
| INTERNAL THREE-PHASE WATTHOUR STANDARD | |
| Typical Accuracy | Voltage ±0.02% Current ±0.02% |
| ENVIRONMENT | |
| Operation Temperature | -4° to 140°F (-20° to 60°C) |
| Humidity | 5% to 95% (non-condensing) |
| MT3-GT PHYSICAL SPECIFICATIONS | |
| Dimentions | Length: 18.82″ x Width: 22.32″ x Hight: 14.72″ |
| Weight | Less than 90 lbs |
| WARRANTY | |
| Parts and Labor | 2-years limited* |
| CERTIFICATION | |
| Each MT3-GT Meter Test Board is CSA® certified for both Canada and the U.S. (CSA C US) | |
| INCLUDED | |
| Transport Case | Mechanical Arm Accessory |
| Quick Start Guide | Probewell InSight application for Windows and API for third-party software integration |
| Calibration report | Optical Test and programming Pickup |
*Only applicable to units shipped to Canada or USA. 1-year warranty for other countries.
Features and specifications are subject to changes without notice.
Support
Support
Frequently Asked Question
1. What is the MT3-GT meter test board?
The MT3-GT is a true three-phase meter test board designed primarily for metershop environments. It provides precise, repeatable testing for digital and mechanical electricity meters, as well as accuracy validation of Probewell field testers.
2. What types of meters can be tested with the MT3-GT?
The MT3-GT supports both digital and mechanical single-phase and three-phase meters. It can also perform accuracy validation on Probewell CT-rated site testers and meter testers used in the field.
3. How does the MT3-GT improve productivity in meter testing?
The MT3-GT reduces setup and training time through its ergonomic design, intuitive InSight software, multi-device network connectivity, and compatibility with existing systems. These features help metershops achieve faster, more consistent results.
4. Is the MT3-GT NIST traceable and compliant with industry standards?
Yes. The MT3-GT comes with a NIST-traceable calibration report at the time of purchase and is CSA certified, ensuring compliance with utility and regulatory requirements.
